主要應用

  拉曼光譜，光譜分析，光譜定標，熒光激發，微光檢查，PIV，激光測量及檢測，科學實驗，準直，光學儀器等。

產品特點

  高穩定型，高可靠性，操作簡便；

  光斑質量好，

  電源自帶過熱、限流保護電路，可外接高速調制；

  全球不同環境的充分考驗，石英壽命10000小時，

  低噪音

  采用優質光纖耦合輸出，高耦合效率；

  適用于熒光激發，光譜分析，激光制版等。

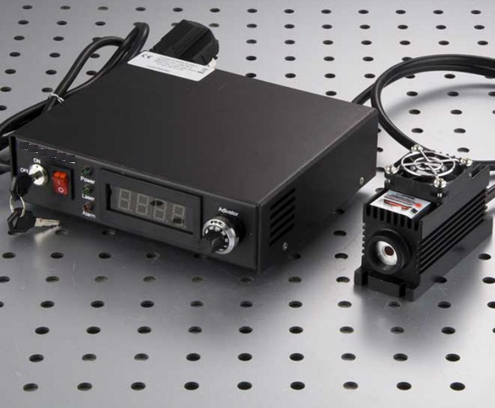

980nm熒光激光器

NBET-H-980/3000~5000mW

INFRARED DIODE LASER AT 980nm

Diode infrared laser module at 980nm is made features of ultra compact, long lifetime, low cost and easy operating, which is used in measurement, communication, spectrum analysis, etc.

技術參數

Wavelength (nm)980±10

Operating mode CW

Output power (mW) >3000, 3100, 3200, … , 5000

Power stability (rms, over 4 hours) <1%, <3%, <5%

Transverse mode Multimode

Dimensions of beam at the aperture (mm) ~5×8

Beam divergence, full angle (mrad) <3.0

Warm-up time (minutes) <5

Beam height from base plate (mm) 29

Operating temperature (℃) 10~35

Power supply (85-264VAC)               PSU-H-LED      PSU-H-FDA

TTL / Analog modulation   TTL or Analog with 1Hz-1KHz 1KHz-10KHz, 10KHz-30KHz optional

Expected lifetime (hours) 10000

Warranty 1 year
