532nm熒光激光器

 532nm熒光激光器

主要應用

  拉曼光譜，光譜分析，光譜定標，熒光激發，微光檢查，PIV，激光測量及檢測，科學實驗，準直，光學儀器等。

產品特點

  高穩定型，高可靠性，操作簡便；

  光斑質量好，

  電源自帶過熱、限流保護電路，可外接高速調制；

  全球不同環境的充分考驗，石英壽命10000小時，

  低噪音

  采用優質光纖耦合輸出，高耦合效率；

  適用于熒光激發，光譜分析，激光制版等。

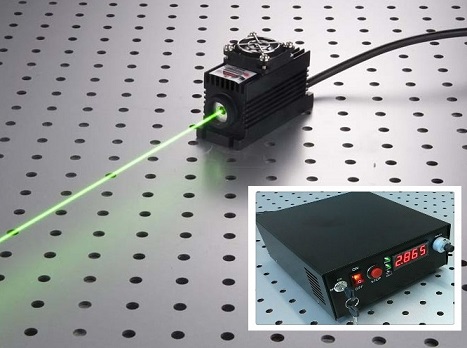

532nm熒光激光器

NBET-FN-532/1~1500mW

LD PUMPED ALL-SOLID-STATE GREEN LASER AT 532nm All solid state 532nm green laser is made features of high output power stability, good beam profile, ultra compact, long lifetime, low cost and easy operating, which is widely used in collimation, laser medical treatment, scientific experiment, optical instrument, etc.

Wavelength (nm) 532±1

Operating mode CW

Output power (mW)> 1,5,10,20,…1500

Power stability (rms, over 4 hours) <1%, <3%, <5%

Transverse mode TEM00

M2 factor <1.2

Beam diameter at the aperture (1/e2, mm) <2.0

Beam divergence, full angle (mrad) <1.5

Beam height from base plate (mm) 27.4

Polarization ratio  >100:1 Horizontal±5 degree (Vertical Optional)

Warm-up time (minutes) <10

Pointing stability after warm-up (mrad) <0.05

Operating temperature (℃) 10~35

Power supply (90-264VAC)                    PSU-III-LED          PSU-III-FDA

Modulation optionTTLon/off, 1Hz-1KHz,1KHz-10KHz 10KHz-30KHz; and Analog modulation option

Expected lifetime (hours) 10000

Warranty 1 year

 選型指南
